Perforated Shutters

Perforated Shutters

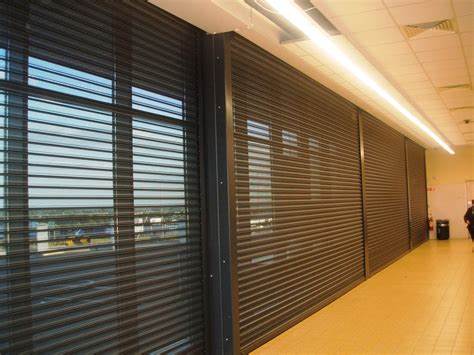

Ideal for shop fronts that are outdoors and need an extra level of security. Perforated lathes have thousands of small, round holes in the curtain. Lit from inside, this creates a semi-transparent effect allowing passers-by to view your display so that you can advertise your products through the night. They are suitable for those looking for shutters granting security and delivers up to 30% visibility at the same time. All perforated shutters can be powder coated in any RAL colour.

Perforated Shutters Features

  • This design allows for airflow, light diffusion, and visibility while maintaining privacy and security.
  • Perforated shutters can be made from various materials, including metal (aluminum, steel), wood, PVC, or composite materials. The choice of material affects durability, aesthetics, and maintenance requirements.
  • The arrangement, size, and shape of the perforations can be customized to achieve specific aesthetic effects.
  •  Many perforated shutters come with locking mechanisms to enhance security when the shutters are closed.

Perforated Shutters Specification

  • The thickness of the material used for the shutters can impact their durability and resistance to damage.
  • The size of the holes and the density of the perforations in the shutters determine the amount of light, airflow, and visibility they allow.
  • The dimensions of the shutters need to match the size of the windows or openings they will be installed on.
  • Specifications related to the type of locking mechanism or security features integrated into the shutters.
  • For motorized shutters, specifications might include details about the type of motor, control options, and power source.
  • In some cases, perforated shutters might have fire-resistant properties, which can be an important consideration in certain applications.
  • Some materials and finishes might require specific maintenance routines to ensure their longevity and appearance.

Electric Perforated Roller Shutters

Our Electric Perforated Roller Shutters come with the following features:



  • Galvanised steel roller shutter
  •  75mm Curved, galvanised 20 gauge lath with 3.5mm perforations (30% Vision)
  • ‘T’ or ‘ L’ profile bottom rail
  • 50 mm x 50 mm steel box section (both sides) used to allow for motor unit and safety brake.

    75 mm x 50 mm box section will be used for shutters over 160 kg in weight (5000 mm x 3200 mm approximately).

  • 50 mm x 75/100 mm angles, where required.

  • Standard guide rails – 65/75/100 mm x 32 mm x 3 mm
  •  Tubular barrel assembly.  Spring assisted barrel assemble for manual shutter
  • Single Phase 240v tubular motor with emergency override system (Inc crank handle)
  • Safety brake (Doorways only)
  • Galvanised steel pressed canopy
  • Mill finish as standard with Hammerite grey powder coat to steelwork frame only
  • Powder coating available in 200+ Standard RAL colours

All Perforated Shutters can be powder coated in any standard RAL colour.
